Chimera - microstructure characterisation from 2d images and 3d volume data Microstructure Characterization from 2D Image Slices and 3D Volume Image Data - Now including Mesh Generation via embedded Harpoon.
CHIMERA includes necessary tools to characterize material microstrucutres from image slices, provide correlation, and even meshing for strength, permeability, and other material properties. Imago has embedded Harpoon for meshing of microstructures.

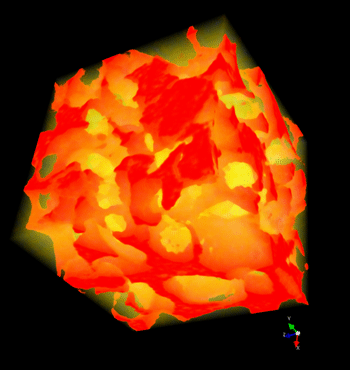

Applications of CHIMERA and Harpoon include Alloys: Reconstruction and Visualization of complex 3D pore morphologies in a high-pressure die-cast magnesium alloy. By S.G. Lee, A.M. Gokhale, and A. Sreeranganathan, Georgia Institute of Technology.
Download flyer
|
